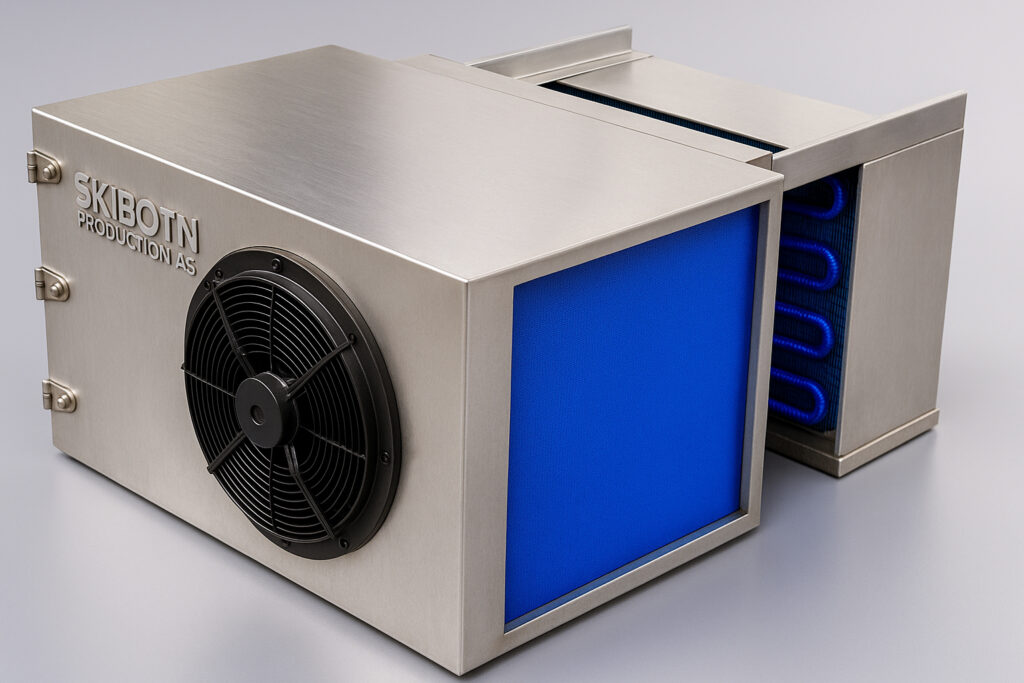

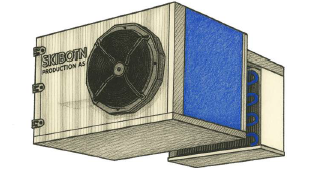

Compact unit for efficient and reliable cooling
Compact, pre-assembled CO₂-based cooling solutions, designed for high energy efficiency, stable operation, and easy installation in industrial and commercial systems.
What is a Compact Unit?
A compact unit is a complete cooling system in which all main components are integrated into a single solution. The unit is designed for efficient cooling in both medium- and low-temperature applications and is delivered pre-assembled for easy installation.
The solution is particularly well suited for installations with limited space, high requirements for operational reliability, and the need for a future-proof CO₂-based cooling solution.
Applications
Cold rooms
Efficient and stable cooling for small and medium-sized cold rooms.
Food industry
Suitable for cooling in food production, processing, and storage.
Industrial facilities
Robust solution for industrial cooling needs with high requirements for operational reliability.
Limited space
Ideal where installation space is limited and a compact solution is essential.
Advantages
Compact and integrated
All main components are integrated into a single compact unit for easy installation and operation.
Pre-assembled solution
Delivered pre-assembled from the factory, reducing installation time and the risk of errors.
CO₂-based refrigerant
Environmentally friendly and future-proof solution with a low carbon footprint and high energy efficiency.
High operational reliability
Robust construction and proven components ensure stable operation over time.
Low space requirement
Ideal for installations with limited available space.
Easy service and maintenance
Good accessibility to components makes servicing fast and cost-effective.
Technical Specifications
Power
• Nominell kapasitet: 10 kW
• Maks kapasitet: 14 kW
Cooling Capacity
• Kjøler 3,0 m³ sjøvann fra +15 °C til 0 °C på ca. 5 timer
Power Consumption
• Maks elektrisk effekt: 4 kW
• Dieselforbruk: 5,5–7 liter for å kjøle 3,0 m³ (20 kWh)
Depends on insulation of the RSW tank
Compressor
• Type: DC Inverter
Ytelsesdata (fra TDS)
Ved +32 °C omgivelse
MT: 3,7 kW / COP 2,07
LT: 1,8 kW / COP 1,09
Ved +25 °C omgivelse
MT: 4,38 kW / COP 2,78
LT: 2,06 kW / COP 1,59
Ved +15 °C omgivelse
MT: 5,89 kW / COP 4,8
LT: 2,3 kW / COP 2,02
Trykk og driftsgrenser
Maks driftstrykk: 100 / 120 bar
Maks omgivelsestemperatur: +43 °C
Dimensions & Weight
• Dybde: 660 mm
• Bredde: 385 mm
• Høyde: 1070 mm
• Driftsvekt: 124 kg
Voltage / Current Type
• 200–240 V, 1-fase, 50/60 Hz
• 25 A
Refrigerant
• R744 / CO₂ (2,4 kg)
Certification
• CE / PED CAT 1
Elektrisk belastning
Maks strøm: 16 A
Maks effektforbruk: 1,79 kW (ved +32 °C)
Lydnivå
Lydtrykk: 39 dB(A) ved 10 m (fri felt)
Styring
Integrert HMI med web-grensesnitt
Skybasert logging og fjernovervåkning
Ready for a compact and reliable solution?
Contact us for more information, technical clarifications, or a no-obligation quote.
We are happy to help you find the right solution for your needs.
